Build Your Dream Lowbed Trailer
Yugma Fabricators are one of the best Low Bed trailers OEM(Original equipment manufacturer).
Our trailers are well designed, highest standards of performance, tough build quality, last longer,
and require minimal maintenance. Moreover, they have an amazingly low un-laden weight.
Yugma Fabricators provides a wide range of Low Bed trailers including Single AXLE,
2 AXLE Flat Bed Trailer, 3 AXLE Flat Bed Trailer, 5 AXLE Flat Bed Trailer & 16 wheeler trailer provide
customized solution of the customer.
Our trailers are suitable for containers, steel coils, or specialized applications.
Both tandem and tridem axle versions. Each & every trailer is engineered with robust capacities you can rely on. The manufacture of the trailer is composed of a one-piece high-quality
steel main beam, a strong floor, and many more components that provide very beneficial weight savings to our Customers. Keeping the various requirements of the customers in mind, our company is involved in manufacturing a standard quality range of Low trailers.
Technical Specification
We work with clients to integrate the flow of the customer experience across channels (e.g., face-to-face, telephone), opening up new lead sources, supporting sales for smaller
Landing Leg
Two speed landing leg shall be provided at the front end.
Axels
13T/16T/18T Axle shall be provided with front lifting axle arrangement (optional)
MAKE - Yugma/ York / Jost / Bpw / Fuwa / Meritor / Tata
Brake System
TVS twin line ABS air brake system coupled to tractor brake system. Trailer brakes are actuated from tractor. T24 brake chamber shall be provided on all axles. Parking brake shall be pneumatically actuated.
Suspension System
13T/15T/16T/18T capacity leaf spring suspension with load equalizing brackets. MAKE - Yugma / York /Jost / Bpw / Fuwa / Meritor / Tata
King Pin
2” king pin equivalent to IS : 6763 Part I provided.
Tyre
10.00 x 20 - 16 PR. MAKE-JK / CEAT / APOLLO / MICHELIN / CONTINENTAL.
Wheel Rim
7.50 x 20. MAKE-WHEELS INDIA / KALYANI /AL
Painting
One coat of primer and one coat of finish PU paint with color of customer choice
Surface Preparation
Surface shall be cleaned by shot blasting followed by painting which confirms ASTM B117.2011.
Electrical
24 V DC electrical include tail lamp, brake lamp and direction indicator lamps fitted at rear end of trailer. Side Marker lamps shall be provided on both sides
Chassis

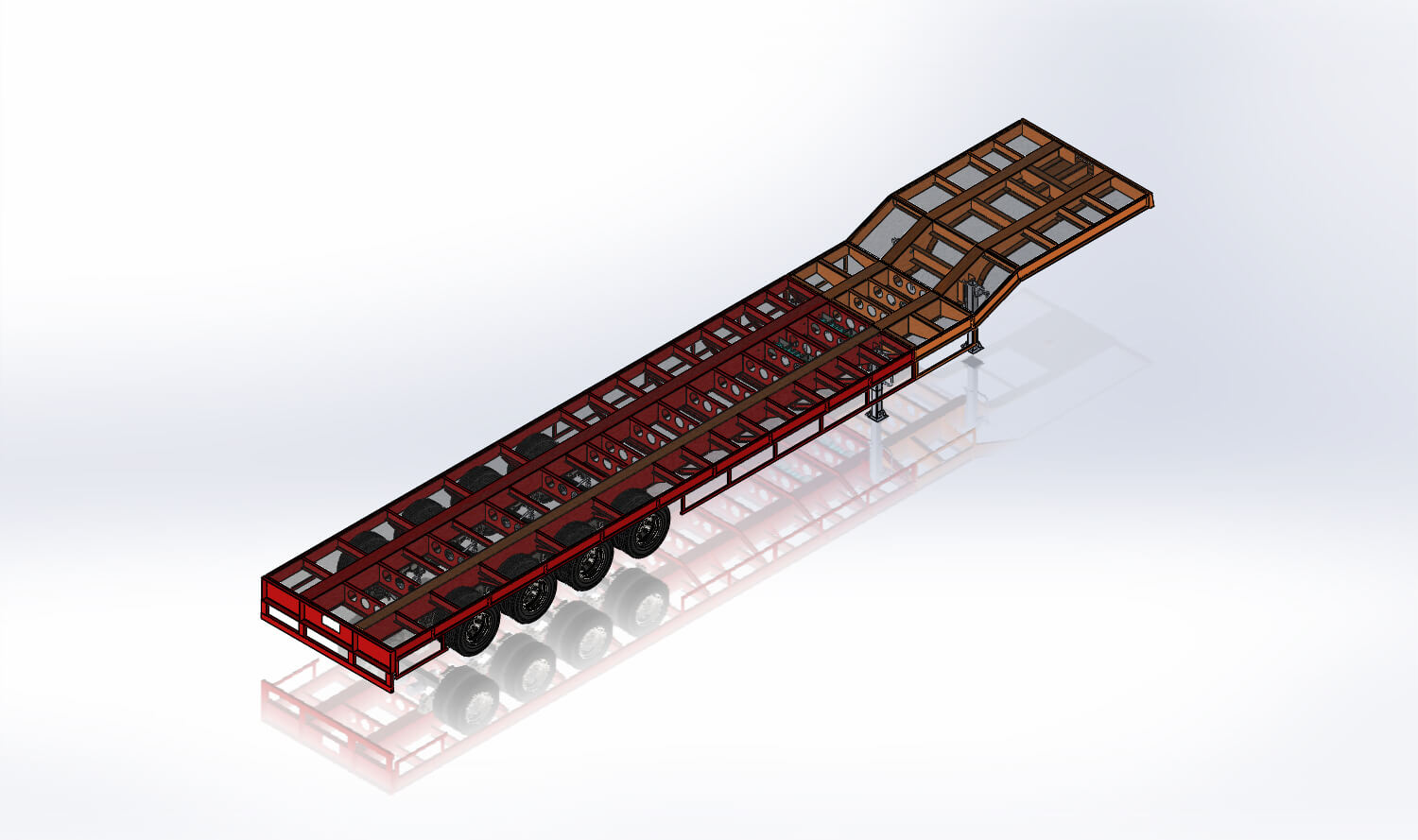

All steel welded construction. 2 nos Main longitudinal members are high strength, lighter weight, Parallel flange Beam of IS2062 (or) Equivalent grade steel running along full length of the trailer. Cross members-Rolled or Folded of material IS-2062/ST-52 are positioned at suitable locations. 4/8/12 nos of twist lock shall be provided to suit 20 & 40 feet container. 4 mm chequered sheet shall be provided all over platform
Other Fitments
Fitments such SUPD, RUPD, TOOL BOX, reflectors on both sides and rear shall be provided as per CMVR
